EN10147 DX51D PPGI Prepainted Galvanised Steel Coil
| Place of Origin | China (Mainland) |
|---|---|
| Brand Name | Sincere |
| Certification | CE & SGS |
| Model Number | Prepainted Galvanised Steel Coil |
| Minimum Order Quantity | Negotiable |
| Price | US $ 600-800 / MT |
| Packaging Details | Standard seaworthy packing for international delivery |
| Delivery Time | 10-30 days |
| Payment Terms | T/T or L/C |
| Supply Ability | 10000 Ton/Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Prepainted Galvanised Steel Coil | Application | Construction & Base Metal |
|---|---|---|---|
| Width | 600-1500mm | Thick | 0.12mm-2mm |
| Description | Galvanized Steel Coil | Base Metal | DC01 |
| Zinc Coating | 30-275g/m2 | Tolerance | ±1% |
| Highlight | DX51D ppgi steel coil,DX51D Prepainted Galvanised Steel Coil,EN10147 Prepainted Galvanised Steel Coil |
||
Product Description
DX51D+Z Ppgi Color Prepainted Galvanised Steel Coil
Prepainted Galvanised Steel Coil Introduction
1. Grade: TDC51D+Z ; TDC51D+AZ;TS280GD+Z ; TS350GD+Z ;TS550GD+Z ;TS250GD+AZ; TS300GD+AZ; TS350GD+AZ...
2. Thickness:0.12mm-2mm
3. Standard: AISI,ASTM,GB,JIS,DIN
4. Certification: ISO9001, SGS,BV.
Prepainted Galvanised Steel Coil Parameters
|
Thick
|
0.12mm-2mm
|
|
Width
|
600-1500 mm
|
|
Coil ID
|
508 / 610MM
|
|
Coil Weight
|
3-8 Tons
|
|
Type Of Substruate
|
Hot dipped galvanized steel coil,galvalume steel coil,cold rolled steel
|
|
Coating Types
|
Top paint:PVDF,HDP,SMP,PE,PU
Primer paint:Polyurethane,Epoxy,PE Back paint:Epoxy,Modified polyester |
|
Standard
|
ASTM-A653; JIS G3302; EN10147;etc
|
|
Payment Terms
|
T/T, LC, Kun Lun Bank, Western Union, Paypal, O/A, DP
|
|
Regular Order
|
25 tons or one container, for less quantity, to contact with us for details
|
|
Hardness
|
Soft hard(HRB60),medium hard(HRB60-85),full hard(HRB85-95)
|
|
Surface Structure
|
Regular spangle,Minimum spangle, Zero spangle, Big spangle
|
|
Surface Treatment
|
Chromated/Non-Chromated, Oiled/Non-oiled, Skin pass
|
Prepainted Galvanised Steel Coil Mechanical Properties
|
Grades |
Mechanical Property |
Coating Adhesion |
|||||
|
Yield StrengthMPa |
Tensile StrengthMPa |
Elongation% ≥ |
Bending Center Diameter at Following Coating Weight (g/m²) (a=Plate Thickness) |
||||
|
La=80mm b=20(mm) |
|||||||
|
At Following nominal Thickness ( mm) |
|||||||
|
≤0.7 |
>0.7 |
≤140/140 |
>140/140-175/175 |
>175/175 |
|||
|
DX51D+Z |
140-350 |
270-500 |
20 |
22 |
0a |
1a |
2a |
|
DX52D+Z |
140-300 |
270-420 |
24 |
26 |
0a |
1a |
2a |
|
DX53D+Z |
140-260 |
270-380 |
28 |
30 |
0a |
1a |
2a |
Prepainted Galvanised Steel Coil Feature
1. Good Resistance to Corrosion
2. Qualified Processing Machinability
3. High Thermal Resistance
4. Excellent Reflectivity
5. Inexpensive and effective enough

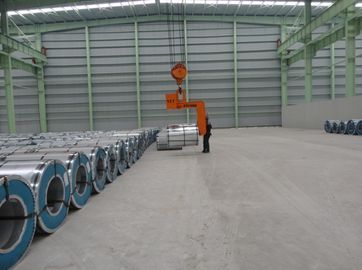

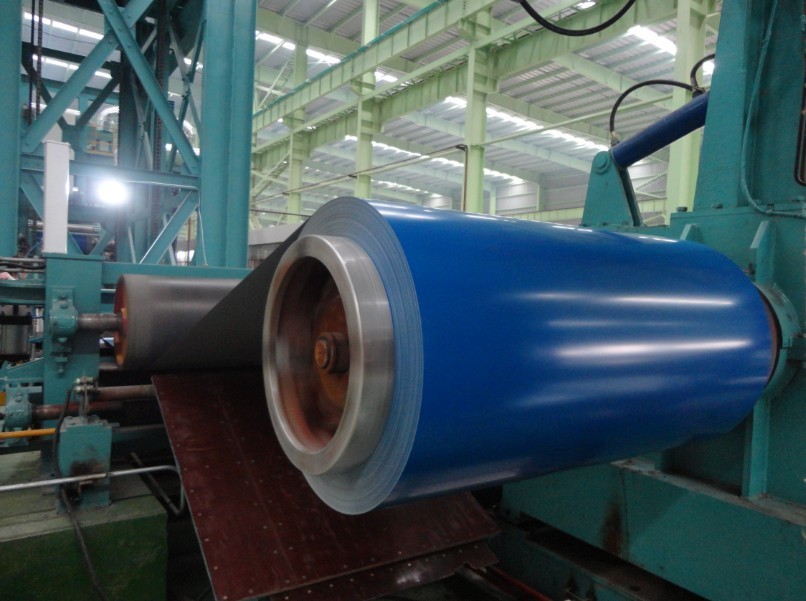

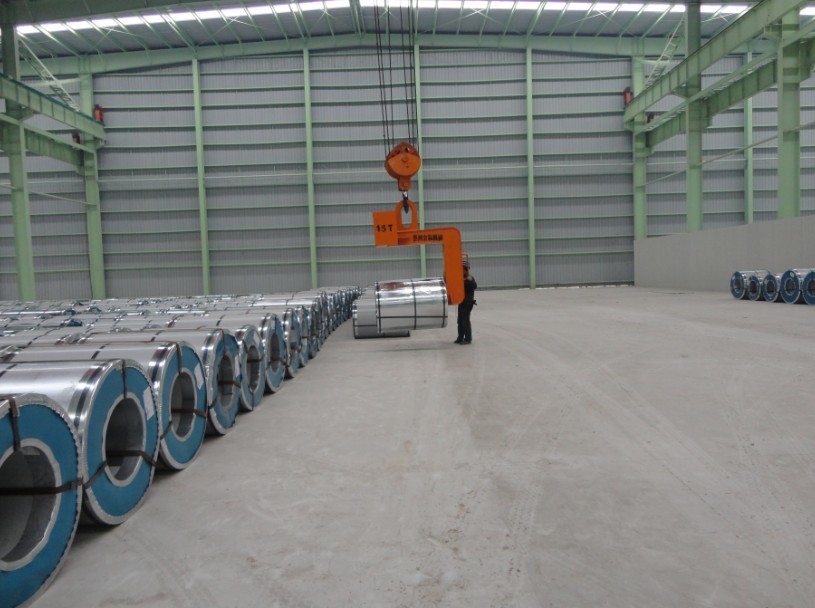

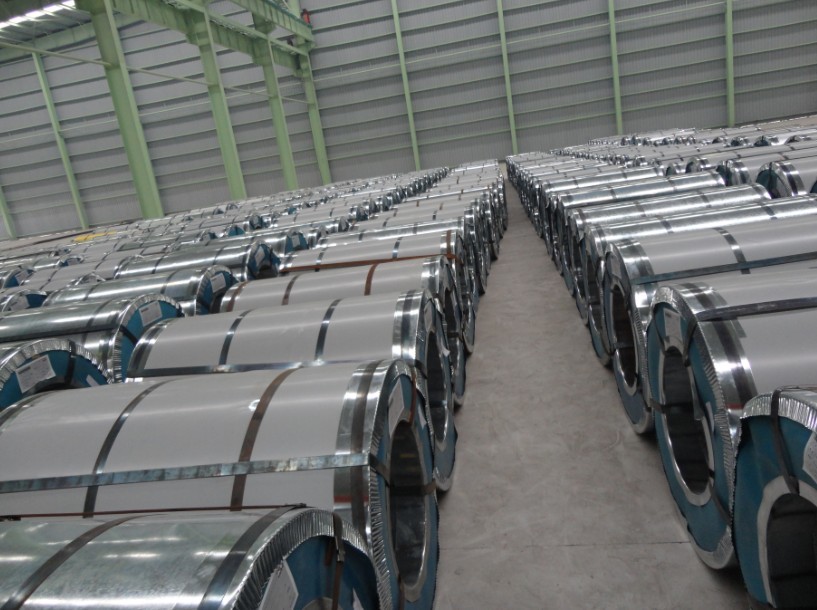

Pictures
